Characteristics

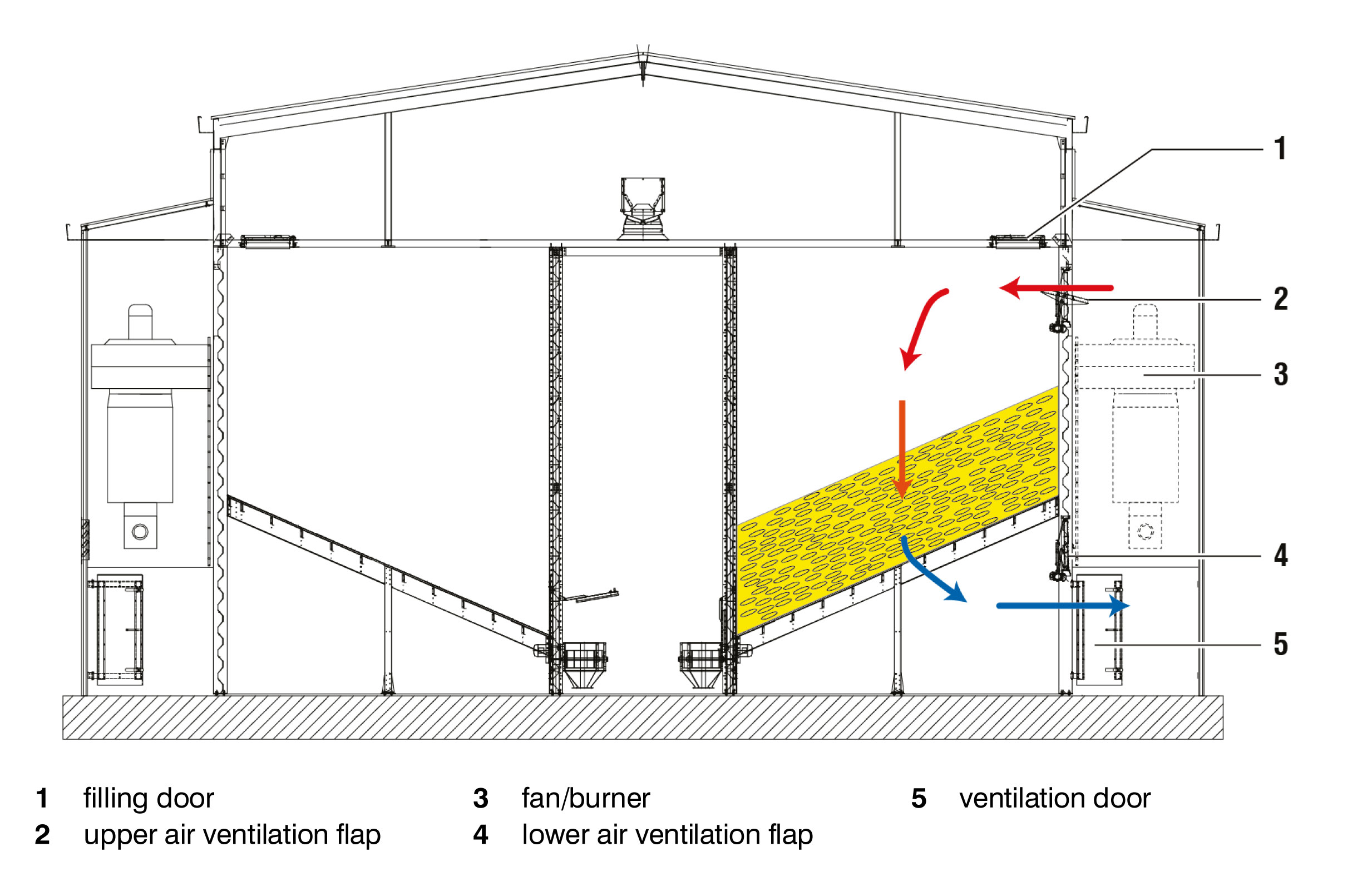

  • Even and gentle drying by using upper and lower air infeed
  • Operated with gas or oil burner
  • Number and size of drying chambers according to customer requirements
  • The complete system is centrally controlled by software
  • Complete temperature monitoring in the system with automatic shutdown if the alarm temperature is exceeded

Total Drying Capacity  (MT) 250 500 1000 1500
Chamber sizes  (mm) 3 990 x 3 990 5 280 x 5 280 6 180 x 6 180 6 180 x 6 180
Drying
Typical input moisture (%) 30 30 30 30
Final moisture (%) 15 15 15 15
Max. height of the material to be  (m) 3 3 3 3
Typical drying time (h) 72 72 72 72
