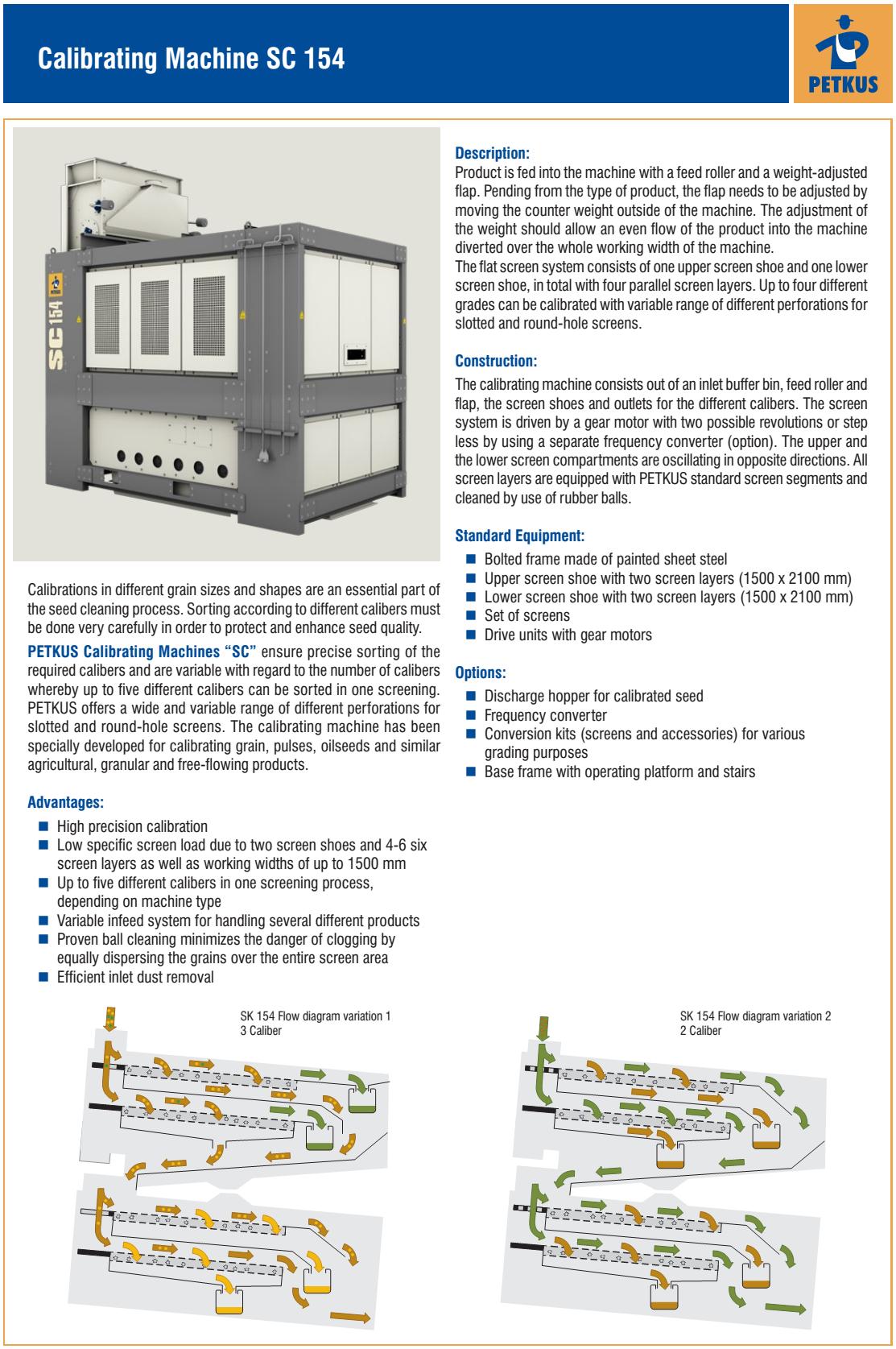

PETKUS Calibrating Systems provide for a precise sorting of the required calibers and are variable with regard to the number of calibers whereby up to five different calibers can be sorted in one screening. PETKUS offers a wide and variable range of different hole sizes for slotted and round-hole screens.

Characteristics
  • Low specific screen load due to two screen compartments and up to six screen layers and a working width of up to 1500 mm

  • ompartments and up to six screen layers and a working width of up to 1500 mm Up to five different sizes in one screening

  • Variable infeed system for handling several different products

  • Proven ball cleaning method minimizes the danger of clogging by equally dispersing the material over the entire working surface

  • Efficient inlet dust removal

 SC 124SC 154SC 126SC 156
Length (mm) 2605 3605 4149 4227
Width (mm) 850 850 950 1150
Height (mm) 1995 1995 2160 2600
Weight (kg) 600 600 700 900
